Nano-Polymer Insulation Waterproofing Pack-WAC200
Nano-Polymer Insulation Waterproofing Pack-WAC200
Product Introduction:
This is a two-component product consisting of one powder package and two supplementary liquids, reinforced with polymeric materials and fibers. It is a reliable and permanent moisture insulation that can resist positive and negative water pressure on concrete surfaces and cement structures. With excellent adhesion to the substrate, this product prevents cracking, provides optimal resistance, and reduces solar energy absorption. It is suitable for waterproofing all concrete surfaces such as tunnels, elevator pits, swimming pools, Jacuzzis, saunas, bathrooms, rooftops, and drinking water tanks, serving as a dependable alternative to traditional bitumen or isogam.
How to Use:
First, mix approximately 4 liters of WAC200 liquid with 4 kg of its special powder to create a slurry. Apply this mixture thoroughly to the surface using a brush or roller.
After it dries, lay a fiberglass mesh over the surface. Mix the remaining 12 kg of powder with 4 liters of WAC200 liquid to form a paste. Apply a 2 mm thick layer of this paste onto the surface using a spatula or trowel. Once dry, if any hairline cracks are observed, prepare the slurry again (as in the first step) and apply it to the surface with a brush or roller. After completion, you can proceed with installing tiles or ceramics.
Substrate Preparation
The contents of each 4 kg bag should be mixed with one 1-liter bottle of L500 resin using an electric mixer. If necessary, a small amount of water may be used as a secondary additive. Once the mixture reaches a dough-like consistency, let it rest for 5 minutes, then mix briefly again before application.

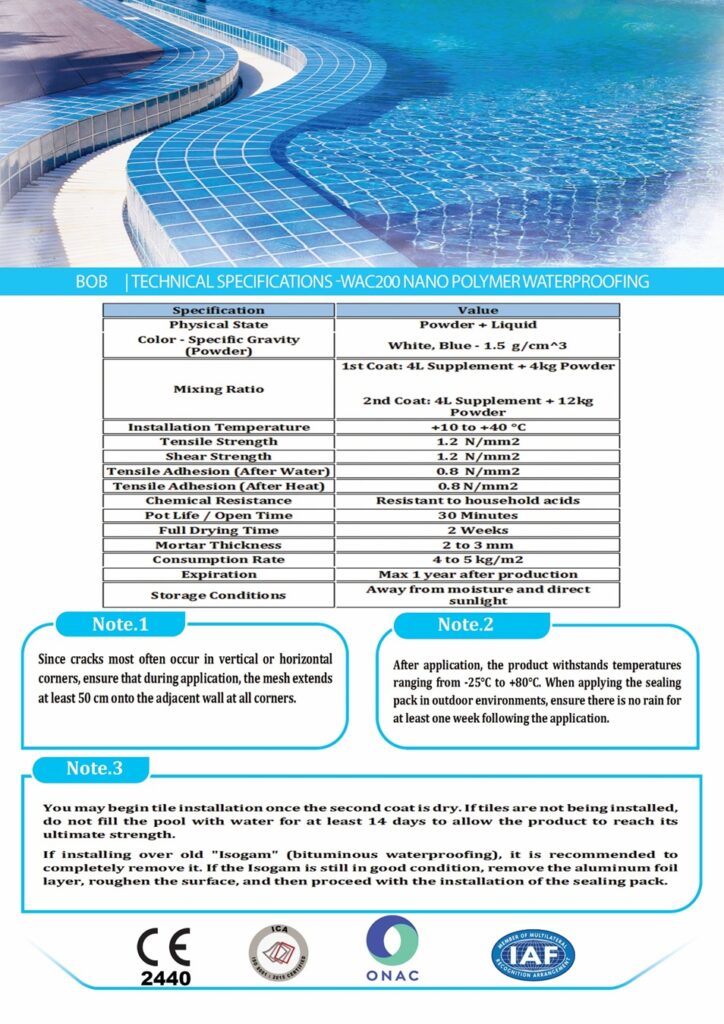

Technical Specifications
| Specification | Value |
|---|---|
| Physical State | Powder + Liquid |
| Color – Specific Gravity (Powder) | White, Blue – 1.5 g/cm³ |
| Mixing Ratio | 1st Coat: 4L Supplement + 4kg Powder |
| 2nd Coat: 4L Supplement + 12kg Powder | |
| Installation Temperature | +10 to +40 °C |
| Tensile Strength | 1.2 N/mm² |
| Shear Strength | 1.2 N/mm² |
| Tensile Adhesion (After Water) | 0.8 N/mm² |
| Tensile Adhesion (After Heat) | 0.8 N/mm² |
| Chemical Resistance | Resistant to household acids |
| Pot Life / Open Time | 30 Minutes |
| Full Drying Time | 2 Weeks |
| Mortar Thickness | 2 to 3 mm |
| Consumption Rate | 4 to 5 kg/m² |
| Expiration | Max 1 year after production |
| Storage Conditions | Away from moisture and direct sunlight |

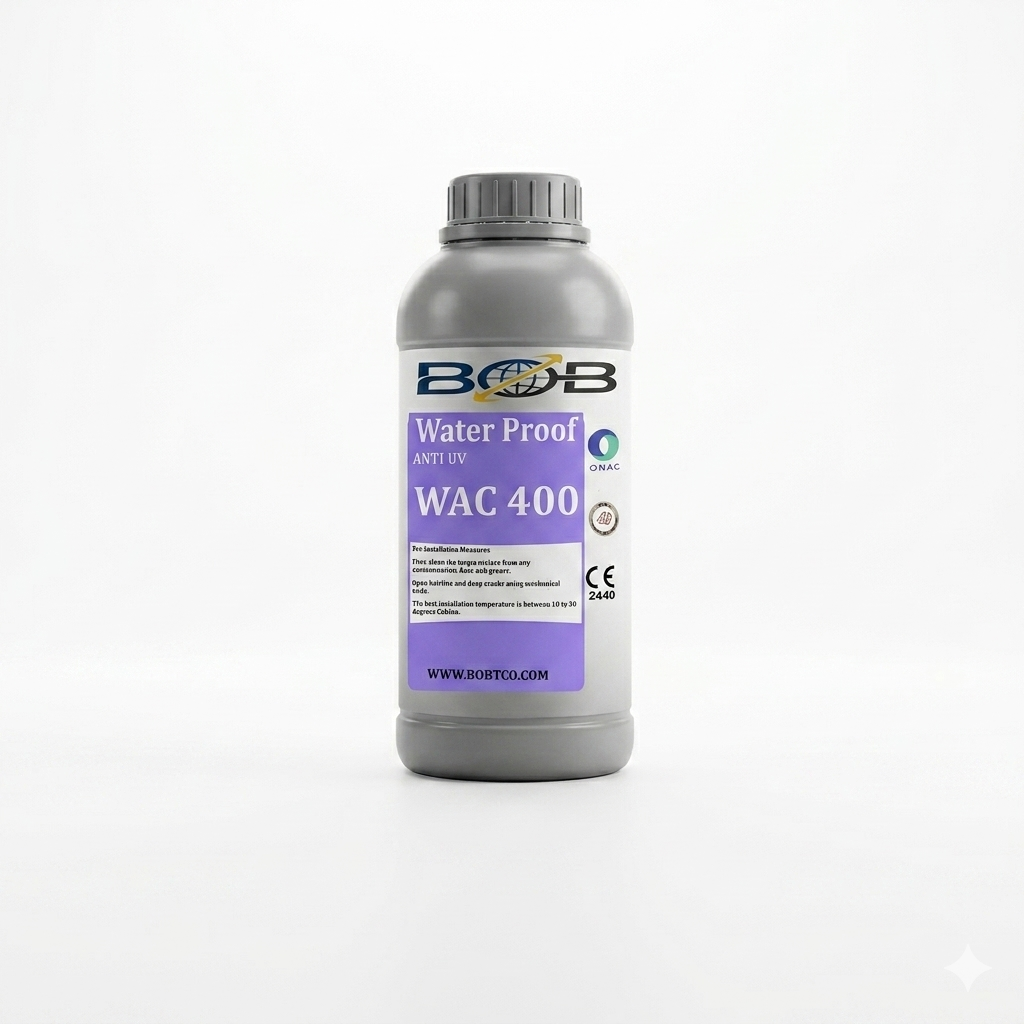

WATER PROOFING MATERIALS Product Introduction-WAC400
WAC400-WATER PROOFING MATERIALS
Product Introduction:
This product is formulated based on emulsion copolymers, featuring a milky color and excellent waterproofing properties. It can be utilized effectively as a moisture barrier. Developed using advanced nanotechnology, the impermeability of this resin after application ensures full waterproofing and high resistance to corrosive chemicals.
How to Use:
- Direct Application: This insulation can be applied directly onto concrete, brick, stone, and other surfaces. It can also be mixed with various powder adhesives produced by this company.
- Mixing Ratio: The ratio is adjusted based on the application type and required resistance (typically replacing 20% to 40% of the mortar or adhesive’s mixing water).
- Mixing Process: Pour the base powder into a suitable container, then slowly add WAC400. Mix with an electric or manual stirrer until a uniform, lump-free paste is obtained.
- Application: Apply the prepared mortar onto the surface using a spatula, trowel, or brush.
- Layering: For guaranteed coverage and better performance, applying two layers is recommended. Ensure each layer is completely dry before applying the next.
- Drying Time: Drying depends on environmental conditions (typically 24 to 48 hours). Avoid direct contact with water or rain during this period.
Substrate Preparation
High Resistance: Superior protection against water and moisture penetration, even in harsh climatic conditions.
Nano-Technology: Specialized formulation ensures deep penetration into the structure and creates a strong chemical bond, preventing layer separation.
Industrial Grade: Suitable for industrial environments.
Versatility: Can be used in its pure liquid form or mixed into mortars and slurries.

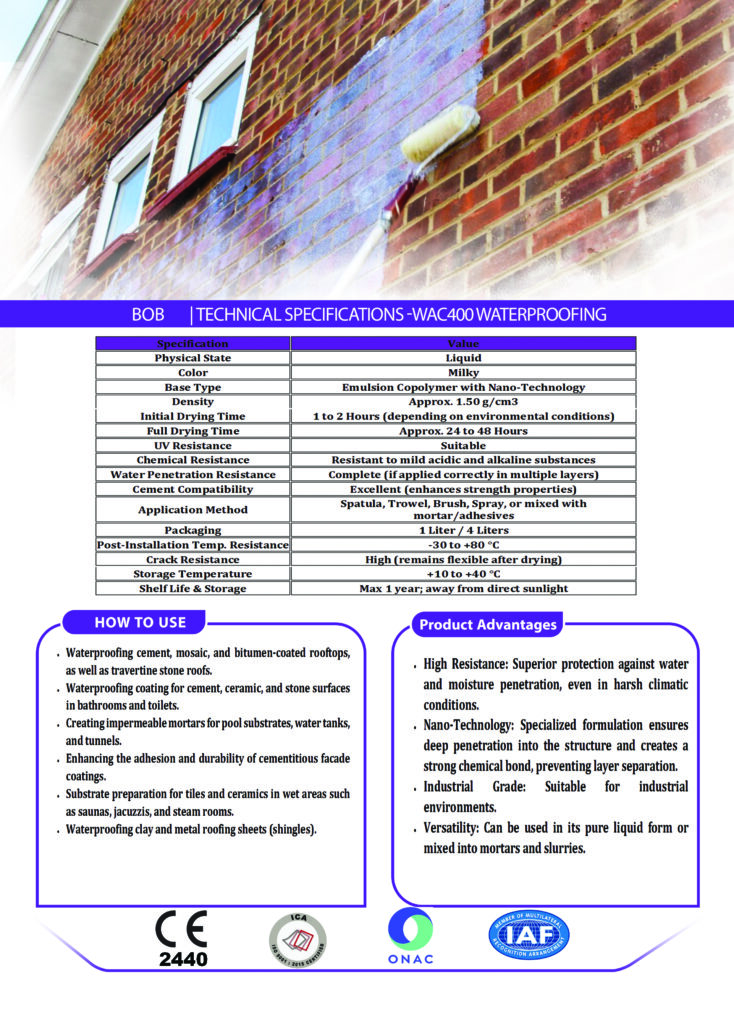

Technical Specifications
| Specification | Value |
|---|---|
| Physical State | Liquid |
| Color | Milky |
| Base Type | Emulsion Copolymer with Nano-Technology |
| Density | Approx. 1.50 g/cm3 |
| Initial Drying Time | 1 to 2 Hours (depending on environmental conditions) |
| Full Drying Time | Approx. 24 to 48 Hours |
| UV Resistance | Suitable |
| Chemical Resistance | Resistant to mild acidic and alkaline substances |
| Water Penetration Resistance | Complete (if applied correctly in multiple layers) |
| Cement Compatibility | Excellent (enhances strength properties) |
| Application Method | Spatula, Trowel, Brush, Spray, or mixed with mortar/adhesives |
| Packaging | 1 Liter / 4 Liters |
| Post-Installation Temp. Resistance | -30 to +80 °C |
| Crack Resistance | High (remains flexible after drying) |
| Storage Temperature | +10 to +40 °C |
| Shelf Life & Storage | Max 1 year; away from direct sunlight |
N600 Microflex-WAC600:
Microflex-WAC600: The New Generation of Building Facade Coatings
Product Introduction
N600 Surface Hydrophobic Resin is formulated based on transparent nano-resins. After application, it causes no change in the color of the treated surfaces. This product contains hydrophobic resins and does not require any additional additives; adding any other substance will destroy its unique properties.
How to Use:
- The transparent coating is applied to the surface using a brush, roller, or spray.
- The target surface must be completely dry. After applying the hydrophobic agent, the surface must not come into contact with moisture, water, or rain for 24 hours.
- The hydrophobic surface will be fully ready after 24 hours.
Substrate Preparation
- Deep Penetration: Fast and deep absorption into the applied surfaces.
- Molecular Level Hydrophobicity: Creates water-repellent properties at a molecular scale.
- Easy Application: Simple to apply using a brush or spray.
- Surface Protection: Protects against surface pollutants, stains, and efflorescence (salt streaks).
- Appearance Retention: No change in color or appearance after complete drying.
- Inhibits Growth: Reduces the development of fungi and mold.
Applications
- Hydrophobic treatment for bricks, blocks, stone, terracotta, and mosaics.
- Applicable on both interior and exterior building facades.
- New and old cementitious surfaces.
- Concrete and water-absorbent surfaces.
- Natural and artificial stone materials.
Technical Specifications
| Specification | Value |
|---|---|
| Physical State | Liquid |
| Color Variety | Colorless, Transparent |
| Features | Long-lasting durability – Suitable for various surfaces |
| Mixing Ratio | Ready to use (No mixing required) |
| Installation Temperature | +10 to +40 °C |
| Temp. Resistance (Cured) | -20 to +80 °C |
| Initial Drying Time | 6 Hours after installation |
| Full Drying Time | 24 Hours |
| Consumption Rate | 1 Liter per 5 m2 |
| Shelf Life & Storage | Max 1 year; away from moisture & direct sunlight |
